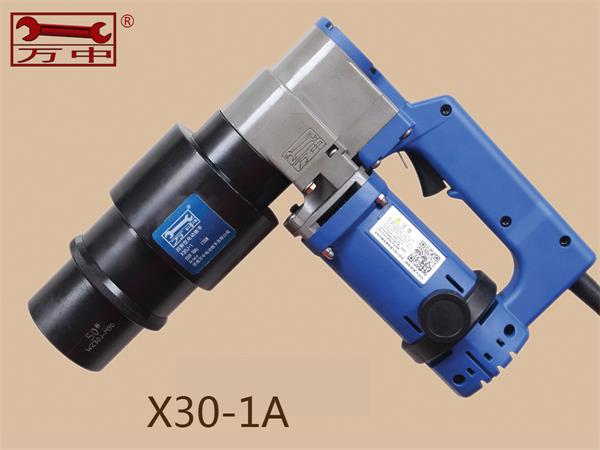

Introduction of Constant Torque Electric Spanner for Bridge Construction隨著改革開放的不斷深入，的基礎設施越來越多，橋梁建設是必不可少的。系索橋是橋梁建設的主要形式。螺栓連接必須采用大六角高強度螺栓。

　　With the deepening of China's reform and opening up, China's infrastructure is increasing, and bridge construction is indispensable. Tethered bridge is the main form of bridge construction. Large hexagonal high strength bolts must be used in bolt connection.

　　大六角高強度螺栓一般為10.9級或12.9級。根據高強螺栓的施工工藝要求，高強螺栓的施工必須先緊固，再緊固。初始擰緊一般為比較大扭矩值的50% ~ 60%;比較后的緊固必須達到螺栓規定的比較大扭矩值。

　　Large hexagonal high strength bolts are generally of grade 10.9 or 12.9. According to the construction technology requirements of high-strength bolts, the construction of high-strength bolts must be tightened first and then. Initial tightening generally ranges from 50% to 60% of the maximum torque value; final tightening must reach the maximum torque value specified by the bolt.

　　大六角高強度螺栓結構，初擰緊時可選用手動扭矩扳手，固定扭矩電動扳手，比較后擰緊時必須選用前田扭矩電動扳手。

　　Large hexagonal high strength bolt structure, the first tightening can choose manual torque wrench, fixed torque electric wrench, the last tightening must choose the front field torque electric wrench.

　　橋梁施工選擇螺栓通常m2-m24和(大六角高強度螺栓,包括m2-m24比較大扭矩值通常是860海里(比較大扭矩值根據不同的摩擦系數,以及不同),(比較大扭矩值通常是1700海里(比較大扭矩值根據不同的摩擦系數,以及不同)早期緊,需要選擇扭矩電動扳手,設置初始擰緊力矩值,開始打螺栓,擰緊幾秒鐘后，停止電動扳手緊固，取出套筒。

　　In bridge construction, bolts are usually M2-M24 and (large hexagonal high strength bolts, including M2-M24 maximum torque value is usually 860 nautical miles (maximum torque value is based on different friction coefficients, and different), (maximum torque value is usually 1700 nautical miles (maximum torque value is based on different friction coefficients, and different) early tightening, it is necessary to select torque electric wrench, set initial tightening moment value, and start to tighten bolts. After a few seconds, stop fastening the electric wrench and take out the sleeve.

　　比較后擰緊時，需要固定扭矩電動扳手，先將扭矩值設置為螺栓的比較大扭矩值。擰緊幾秒鐘后，電動扳手停止擰緊，可以取出。

　　Finally, when tightening, it is necessary to fix the torque electric wrench. First, the value of the torque is set to the maximum value of the bolt. After tightening for a few seconds, the electric wrench stops tightening and can be taken out.

　　初擰緊時可選用通用固定力矩電動扳手，末擰緊時必須選用前田固定力矩電動扳手，扭矩大，誤差小，精度高。

　　The universal fixed moment electric wrench can be used in the initial tightening, and the front field fixed moment electric wrench must be used in the final tightening. The torque is large, the error is small and the precision is high.

　　用法:

　　Usage:

　　(1)將表盤設置為所需扭矩值，扳手套在螺栓上。

　　(1) Firstly, the dial is set to the required torque value, and the wrench glove is placed on the bolt.

　　按下開關，開始工作。

　　Press the switch and start working.

　　(3)當扳手達到設定扭矩值時，自動停止擰緊，然后拔出扳手結束工作。

　　(3) When the wrench reaches the set torque value, it automatically stops tightening and pulls out the wrench to finish the work.

　　使用注意:

　　Use note:

　　請嚴格遵守監管要求。

　　Please strictly comply with the regulatory requirements.

　　將螺栓合理、平穩地插入套筒內，不要傾斜，以延長套筒的使用壽命。

　　Insert the bolt into the sleeve reasonably and smoothly without tilting, so as to prolong the service life of the sleeve.

　　及時更換碳刷，碳刷不得短于6mm，以延長電機的使用壽命。

　　Replace the carbon brushes in time. The carbon brushes should not be less than 6mm in order to prolong the service life of the motor.

　　不要反復擰緊。

　　Don't tighten it repeatedly.

　　工作時請勿觸摸反力臂。

　　Do not touch the reaction arm while working.

　　調整正轉和負轉，務必將觸發器旋轉到位。

　　To adjust the positive and negative rotation, it is necessary to rotate the trigger in place.

　　當綠燈亮?xí)r，它通常是開著的，可以正常工作。

　　When the green light is on, it is usually on and can work properly.

　　當紅燈亮?xí)r，是非法操作，需要重新啟動電源工作。

　　When the red light is on, the operation is illegal and the power supply needs to be restarted.

　　配備:

　　Equipment:

　　鐵箱、防雨插座、螺絲刀、合格證、說明書(原件)。

　　Iron box, rain-proof socket, screwdriver, certificate and instruction (original).

　　開箱檢查:

　　Opening inspection:

　　1. 檢查機器的外觀和隨機配件的數量。

　　1. First check the appearance of the machine and the number of random parts.

　　2、檢查機器銘牌、商標鋼印。

　　2. Inspection of machine nameplates and trademarks.

　　3、插拔試驗后，機器性能良好。

　　3. After the plug-in test, the machine has good performance.

　　然后去工地工作。

　　Then go to work on the site.

　　取代袖:

　　Replace sleeve:

　　1. 松開定位頂線，拆卸套筒。

　　1. Loosen the top line and remove the sleeve.

　　2. 安裝必要的套筒。

　　2. Install the necessary sleeve.

　　3.擰緊兩個定位螺絲。

　　3. Tighten two positioning screws.

　　更換碳刷:

　　Replace the carbon brush:

　　(1)取下電刷蓋，放入碳刷

　　(1) Remove the brush cover and put the carbon brush into it.

　　壓入彈簧。

　　Press in the spring.

　　(長對短，短對長)

　　(Long to short, short to long)


　　上弦(不要用力太大)。

　　Upper chord (don't exert too much force).

　　定期檢查保養:

　　Regular inspection and maintenance:

　　1. 定期檢查電源線。

　　1. Check the power cord regularly.

　　2. 定期檢查各部位螺絲，注意電機的聲音。

　　2. Check the screw in every part regularly and pay attention to the sound of the motor.

　　3、確保電機、套筒、機器內部，不進雜物。

　　3. Ensure that motor, sleeve and machine are free from impurities.

　　4. 擰緊螺栓5000次，及時檢查炭刷和套管。

　　4. Tighten bolts 5000 times, check carbon brush and casing in time.

　　5. 每次手術后，將其存放在干凈干燥的地方。

　　5. After each operation, store it in a clean and dry place.

　　2. 嚴禁使用非220v電壓供電。

　　2. It is strictly forbidden to use non-220v voltage for power supply.

　　3.遠離易燃易爆物品。

　　3. Keep away from inflammable and explosive materials.

　　4. 愛護防護工具及配件。

　　4. Care for protective tools and accessories.

　　5. 在檢修時請切斷電源。

　　5. Cut off the power supply during the overhaul.

　　6. 嚴禁將機器猛烈撞擊或摔落。

　　6. It is strictly forbidden to hit or fall the machine violently.

　　7. 高空作業時應采取措施。

　　7. Safety measures should be taken when working at high altitude.

　　8、機器發熱，或環境溫度高于40度，停止使用。

　　8. When the machine is heated or the ambient temperature is above 40 degrees, stop using.

　　9. 當炭刷短于6mm時，應及時更換炭刷，否則電機會燒壞。

　　9. When the carbon brush is less than 6mm, the carbon brush should be replaced in time, otherwise the motor will burn out.

　　10. 嚴禁客戶自行拆卸機器。

　　10. It is strictly forbidden for customers to disassemble machines by themselves.

　　1. 請仔細閱讀說明書，嚴格按照正確的擰緊施工工藝操作。

　　1. Please read the instructions carefully and strictly follow the correct tightening construction process.

　　2. 請務必使用220V電源。

　　2. Be sure to use 220V power supply.

　　3.正確連接電源分機線。(否則會產生電壓下降，降低扭矩，降低電機有效轉速，電機發熱導致漆包線短路)延長線占地面積2.0平方毫米，比較長長度30米。

　　3. Connect the power extension line correctly. (Otherwise, the voltage will drop, the torque will be reduced, the effective speed of the motor will be reduced, and the heat of the motor will lead to the short circuit of the enameled wire). The extension line covers an area of 2.0 square millimeters and the longest length is 30 meters.

　　延長線的面積為3.5平方毫米，比較長長度為60米。

　　The extension line has an area of 3.5 square millimeters and a maximum length of 60 meters.

　　4、請使用原插座、地線、漏電保護器設置。開始使用扭矩電動扳手前，請先預熱幾分鐘。6. 電動扳手工作時，請勿用手觸摸反力臂。

　　4. Please use the original socket, ground wire and leakage protector. Before starting to use the torque electric wrench, please warm up for a few minutes. 6. Do not touch the reaction arm with your hand when the electric wrench is working.

　　7. 當使用正反旋轉時，一定要旋轉到位的旋轉觸發器。8、緊固螺栓時，從螺栓的小扭矩值開始，不要從螺栓的大扭矩值開始。9. 扳手?jǐn)Q緊螺栓停止時，請不要再啟動機器擰緊。請及時更換碳刷，使用原碳刷。不能短于6mm(否則由于碳刷彈簧壓力不足，轉子會被電火花燒毀)。紅燈指示輸入錯誤，請重新啟動。

　　7. When using positive and negative rotation, it is necessary to rotate the rotating trigger in place. 8. When tightening the bolt, start with the small torque value of the bolt, not the large torque value of the bolt. 9. When the wrench tightens the bolt to stop, please do not start the machine tightening again. Please replace the carbon brush in time and use the original carbon brush. It should not be less than 6mm (otherwise, the rotor will be burned by electric spark due to insufficient spring pressure of carbon brush). The red light indicates an error in input. Please restart.

　　請保持工作場所清潔。13. 注意穿著合適的工作服，遠離人群，注意，輕拿輕放，在高空保持平衡，雨天不要工作。

　　Please keep the workplace clean. 13. Pay attention to wearing appropriate work clothes, away from the crowd, pay attention to safety, handle lightly, maintain balance at high altitude, do not work in rainy days.

　　14. 請使用原配件及配件。切勿更換或使用非機器配件。

　　14. Please use the original parts and accessories. Do not replace or use non-machine parts.

　　15. 正確保護電動扳手的本體、外殼、電線及附件。不要自己打開扳手。如需維修，請與制造商的銷售代表接洽。

　　15. Correctly protect the body, shell, wire and accessories of the electric wrench. Don't open the wrench by yourself. For maintenance, please contact the manufacturer's sales representative.
