數顯扭力扳手使用方法：
How to use digital torque wrench:
1.拿起數顯扭力扳手逆時針旋轉取下后蓋，按電池正極向里的方向裝好電池并旋緊后蓋（注：我司另有可充電式型號）。
1. First, take up the digital display torque wrench and rotate it anticlockwise to remove the back cover. Install the battery in the direction of the positive pole of the battery and tighten the back cover (note: our company has other rechargeable models).
2．然后開啟電源：長按開關機、按鍵，液晶顯示顯示 0.0，即可開始使用。
2. Then turn on the power: Long press the power on/off button and the clear button, and the LCD will display 0.0 to start using.
3．單位選擇：根據自身的使用要求，按設置鍵，選擇扭矩單位 N.m、in.lb、ft.lb、 kgf.cm、kgf.m。
3. Unit selection: according to its own use requirements, press the setting key to select torque units N.m, in.lb, ft.lb, kgf.cm, kgf. m.
4．預置：開機狀態下，按壓回車確認鍵設置鍵選擇【MODE】后，進行修改預制值，修改完成后按壓鍵確認并退出設定模式。
4. Preset: Under the power on state, press the Enter key to confirm the setting and select [MODE] to modify the preset value. After the modification, press the Enter key to confirm and exit the setting MODE.
5.．校零：扳手自然水平放置狀態下，長按回車確認鍵 3 秒，液晶顯示器顯示“0.0，即可使用。
5. Zero calibration: when the wrench is placed in a natural horizontal position, long press the Enter confirmation key for 3 seconds, and the LCD will display "0.0, then it can be used.

6．測量：將換向板扳到相應的位置，將套筒套在方榫上，扳動手柄，當預置報警燈點亮同時報警聲響起時，表示緊固力矩已經達到預置值，停止加力。如果在峰值狀態，所施加的力矩在卸力后繼續顯示在液晶顯示 器上，按回車確認鍵存儲數據。
6. Measurement: pull the reversing plate to the corresponding position, put the sleeve on the square tenon, and pull the handle. When the preset alarm lamp lights up and the alarm sounds, it means that the tightening torque has reached the preset value, and the force is stopped. If it is in the peak state, the applied torque will continue to be displayed on the LCD after unloading, and press Enter to store the data.
7．關機：當長按開關機、按鍵壓鍵3秒即可關機。
7. Shutdown: press the ON/OFF button for a long time, clear the key and press the key for 3 seconds to shutdown.
8．數據傳輸詳見無線/有線數顯扳手通訊協議。
8. See wireless/wired digital wrench communication protocol for data transmission.
以上就是為大家介紹的有關扭剪螺栓專用扳手的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.hkystar.com

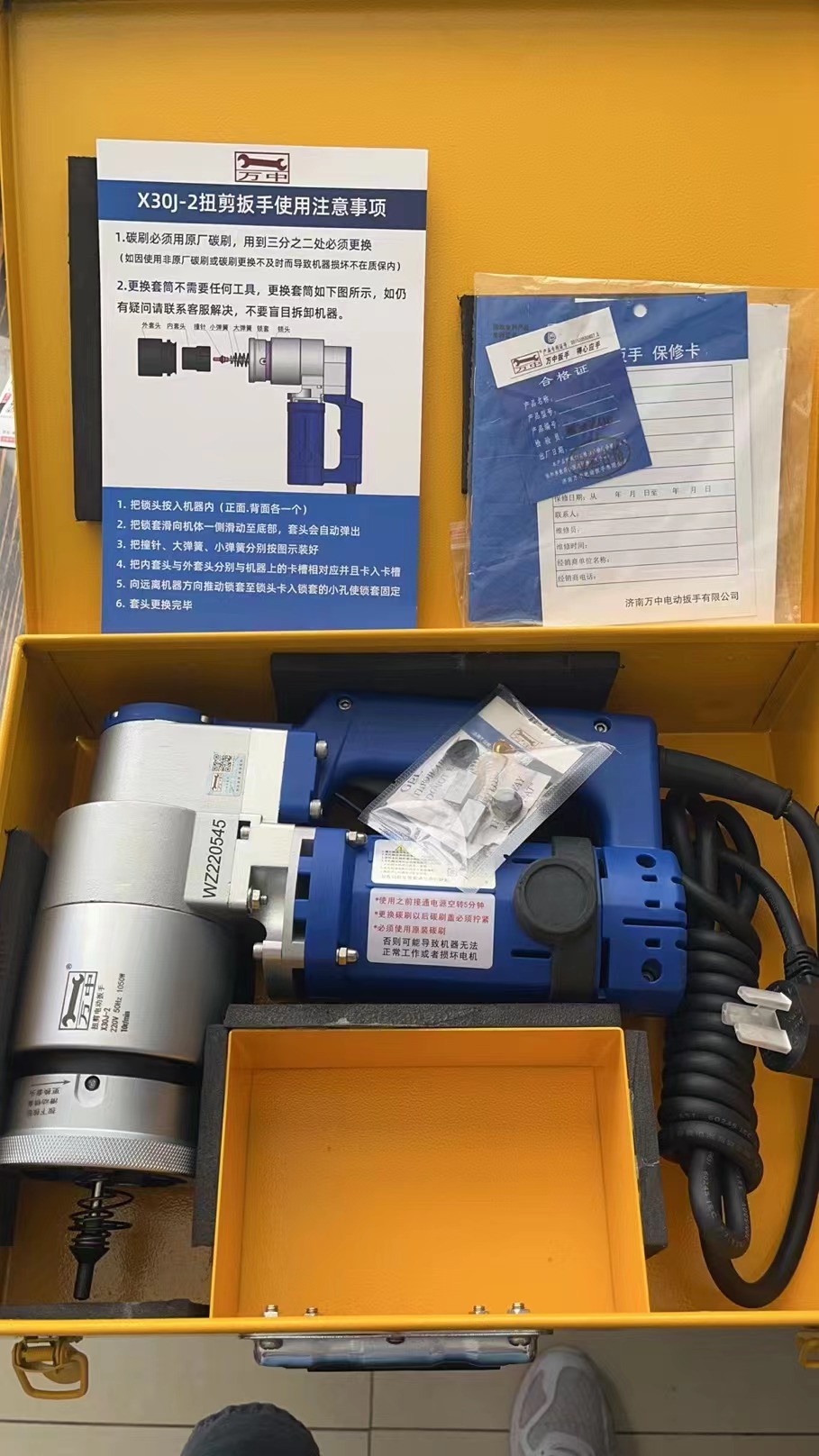

The above is a detailed introduction to the special wrench for torsional shear bolts, and we hope it will be helpful to you. If you have any questions, please contact us. We will provide services for you with our attitude http://www.hkystar.com
