螺栓標準尺寸對照表是什么？

來源：http://www.hkystar.com日期：2022-12-19 發布人：admin

螺栓規格尺寸的內容非常多，M代表三角螺紋，M后面的數代表公稱直徑，×號后面的數是表示螺栓去帽后的長度。例如：M6×30M代表三角螺紋，6代表螺紋的公稱直徑是6，也就是說是6個的螺紋，30代表螺栓去帽后的長度。
There are many specifications and dimensions of bolts. M represents triangular thread, and the number behind M represents nominal diameter, × The number after No. is the length of the bolt after the cap is removed. Example: M6 × 30M represents the triangular thread, 6 represents the nominal diameter of the thread is 6, that is, 6 threads, and 30 represents the length of the bolt after the cap is removed.
由頭部和螺桿兩部分組成的一類緊固件，需與螺母配合，用于緊固連接兩個帶有通孔的零件。如把螺母從螺栓上旋下，又可以使這兩個零件分開，故螺栓連接是屬于可拆卸連接。
A type of fastener consisting of head and screw shall be matched with nut to fasten and connect two parts with through hole. If the nut is unscrewed from the bolt, the two parts can be separated, so the bolted connection is a removable connection.

國標螺栓一般分為兩種：
GB bolts are generally divided into two types:
GB30螺栓、GB21螺栓，區別在于GB30的六角頭比GB21的要大一些。材質均采用：Q235.等級為4.8級，硬度較弱，用于硬度要求低，不經?；顒拥牟课?，人們所謂的普通螺栓。典型的用途：機械業、建筑業、的固定、緊固。
The difference between GB30 bolt and GB21 bolt is that the hexagonal head of GB30 is larger than that of GB21. Materials: Q235. The grade is 4.8, and the hardness is weak. It is used for the parts with low hardness requirements and infrequent activities, which are called ordinary bolts. Typical uses: fixing and fastening in machinery industry, construction industry, etc.
M=螺紋的直徑 L=螺桿的長度例如M24×70 就代表螺栓的直徑為24mm 螺桿長度為70mm （不包括六角頭）。
M=diameter of thread L=length of screw e.g. M24 × 70 means that the diameter of the bolt is 24mm, and the length of the screw is 70mm (excluding the hexagon head).

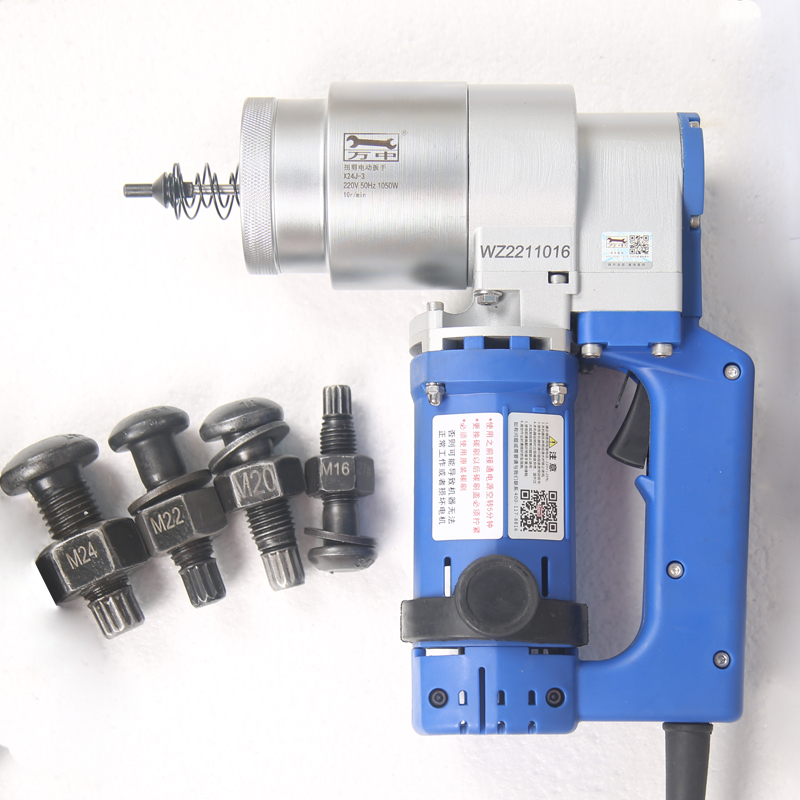

以上就是為大家介紹的有關扭剪電動扳手的詳細的介紹,希望對您有所幫助.如果您有什么疑問的話,歡迎聯系我們.我們將以的態度,為您提供服務http://www.hkystar.com
