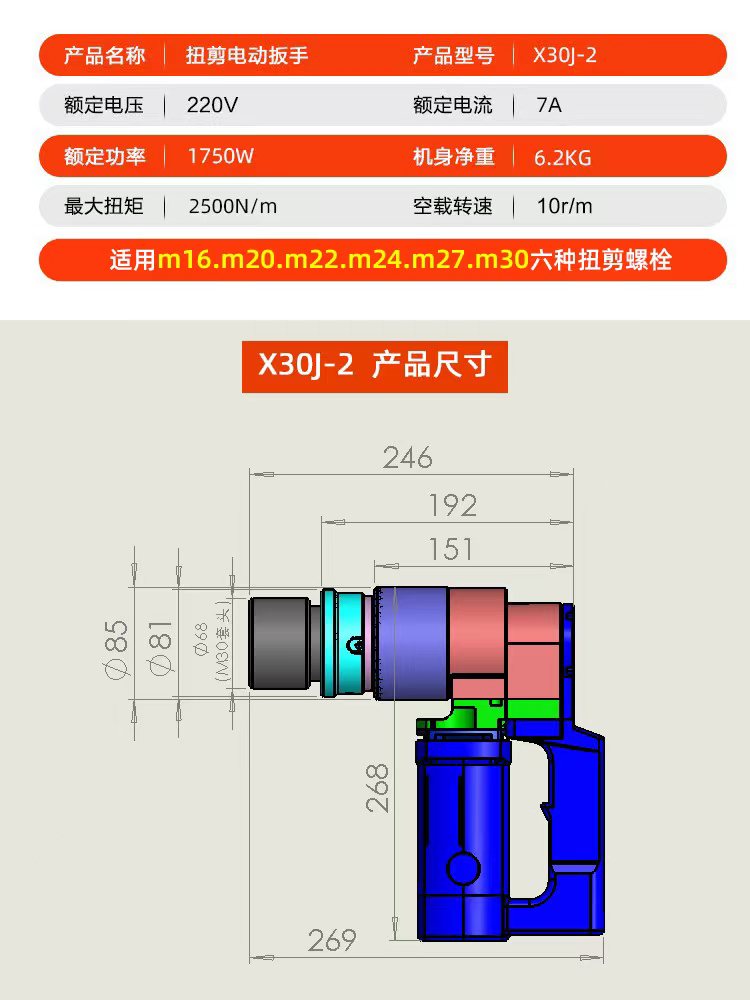

X30J-2扭剪扳手 鋼結構專用扭剪扳手 扭剪螺栓電動扳手
X30j-2 torsion shear wrench special torsion shear wrench for steel structure torsion shear bolt electric wrench
X30j-2扭剪扳手適用于m16-30六種扭剪螺栓
X30j-2 torsion shear wrench is applicable to six kinds of M16-30 torsion shear bolts
相當于24和30兩臺扳手集于一身，重量輕，優(yōu)惠，轉速快等優(yōu)點
Equivalent to 24 and 30 wrenches in one, it has the advantages of light weight, favorable price and fast rotation speed
整機質保兩年，套筒終生保用，順豐包郵
The whole machine is guaranteed for two years, the sleeve is guaranteed for life, and SF post is included
扭剪型電動扳手使用方法：
Usage of torsion shear electric wrench:
1， 用扳手內套筒 插進螺栓尾部梅花頭部分，同時向前推動扳手，內套筒后退，使外套筒 套住螺母，若不能 套住螺母請左右轉動 手并向前用力。
1. Insert the wrench inner sleeve into the plum blossom head at the end of the bolt, and push the wrench forward at the same time. The inner sleeve retreats to make the outer sleeve cover the nut. If the nut cannot be covered, please turn your hand left and right and exert forward force.
2， 扣動扳手開關，使其旋轉。
2. Turn the wrench switch to make it rotate.
擰斷梅花頭，緊固結束，同時扣動彈出梅花頭。
Unscrew the plum blossom head, tighten it, and snap the pop-up plum blossom head at the same time.
扭剪型電動扳手特點：
Characteristics of torsion shear electric wrench:
電動扭力扳手由主機和控制儀兩部分組成，主機采用雙重絕緣單相串激式電動機和減速機構，結構新穎，體積小，重量輕，更加可靠。由于采用靜扭結構，運轉平穩(wěn)，無振動，無沖擊，噪音小，操作者不受反力矩的影響，因而勞動強度低。額定電壓220V50/60Hz精度±5%
The electric torque wrench is composed of a host machine and a controller. The host machine adopts a double insulated single-phase series motor and a reduction mechanism, which is novel in structure, small in size, light in weight and more reliable. As the static torsion structure is adopted, the operation is stable, without vibration, impact, low noise, and the operator is not affected by the counter torque, so the labor intensity is low. Rated voltage 220v50/60hz accuracy ± 5%
The above is the torsional shear wrench http://www.hkystar.com Thank you for checking the information of our company in your busy schedule. If you want to know more, you are welcome to call us for consultation!
