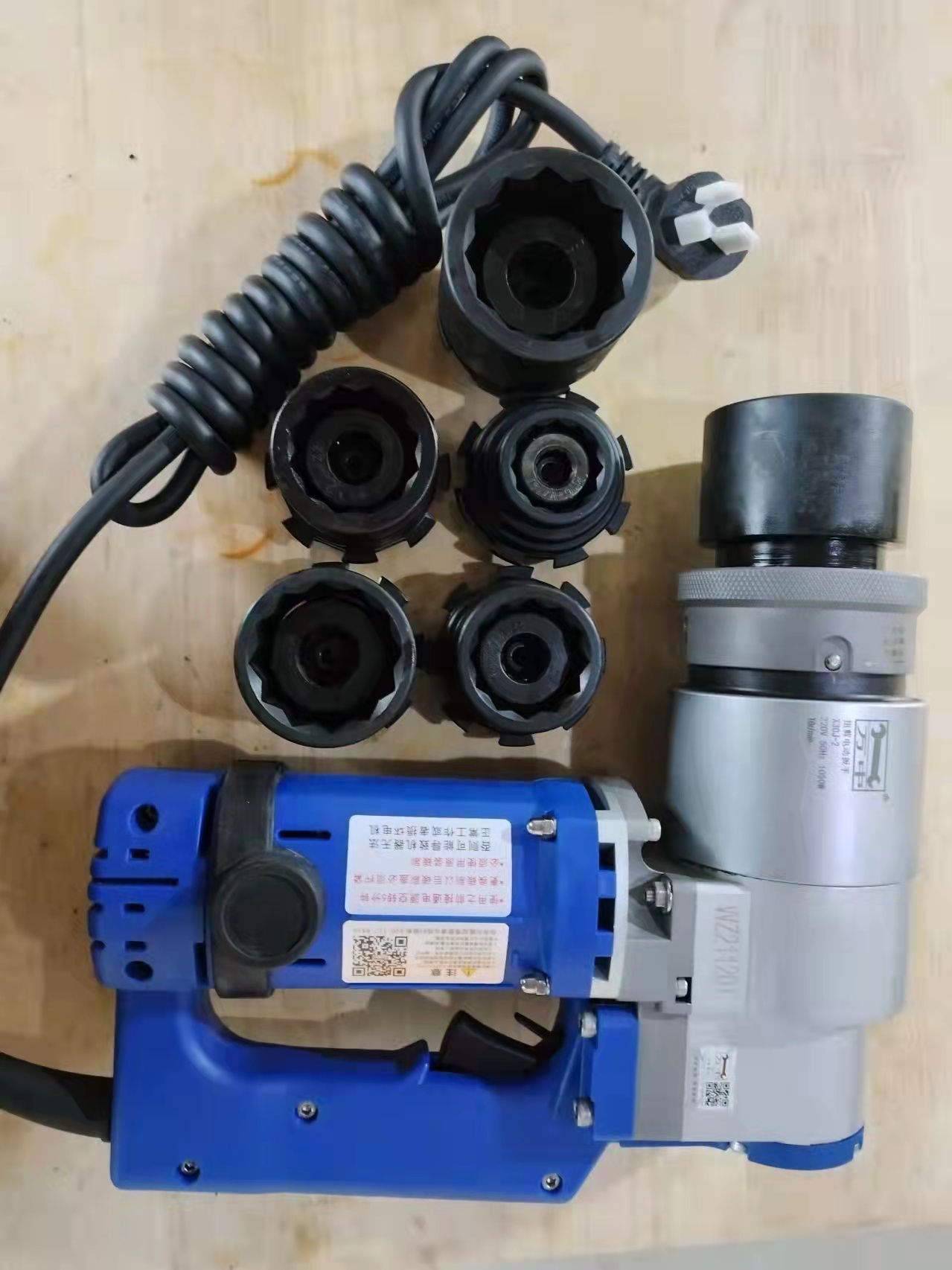

扭剪扳手配件可以通用嗎？

Can the accessories of torsion and shear wrench be used in general?

扭剪扳手配件一般都不可以勇用的，扳手的型號相同，但是里面的構造是不同的，另外扭剪扳手的套筒27#  34#  36#  41#套筒型號相同，但是樣式也不相同，所以即使套筒型號相同，也是不可以通用的，還需要找原廠家購買配件和套筒。

Generally, the accessories of torsion and shear wrenches can not be used bravely. The models of wrenches are the same, but the structures inside are different. In addition, the socket 27# 34# 36# 41# sleeve models of torsion and shear wrenches are the same, but the styles are also different. Therefore, even if the socket models are the same, they can not be used in general. You need to find the original manufacturer to buy accessories and sleeves.

預置式扭力扳手的使用方法如下：

The use method of preset torque wrench is as follows:

1、按所需定力數值，選擇相應的并經校驗合格的定扭矩扳手，不準使用沒有經過校驗的定扭力扳手。

1. According to the required constant torque value, select the corresponding constant torque wrench that has passed the verification. It is not allowed to use the constant torque wrench that has not been verified.

2、要用平衡、緩慢的力扭轉扳手，不能急扭，手握住定扭力扳手手柄中間點，垂直于扳手線拉動手柄，直到達到所要求的力矩為止，不允許隨意手握根部和端點。

2. A balanced and slow torque wrench shall be used instead of quick torque. Hold the middle point of the handle of the constant torque wrench and pull the handle perpendicular to the center line of the wrench until the required torque is reached. It is not allowed to hold the root and end points at will.

3、不要施加大于定扭力扳手額定值的扭矩，不準用定扭力扳手拆卸螺栓或螺母，定扭力扳手只能順時針轉動。

3. Do not apply torque greater than the rated value of the constant torque wrench. Do not use the constant torque wrench to remove bolts or nuts. The constant torque wrench can only rotate clockwise.

4、用定扭力扳手?jǐn)Q緊螺栓時，應盡可能不使用轉接器，非用不可時，必須遵守下列要求：轉接器有各種不同形狀時，可合理選用；為減少擰緊力矩誤差，轉接器長度應小于定扭力扳手長度；連接轉接器時，其線應和扳手線成一條直線，若需要也可使用軸線偏移的轉接器，但不超過15°角。

4. When tightening the bolts with a constant torque wrench, the adapter shall not be used as far as possible. When it is necessary to use it, the following requirements must be observed: when the adapter has various shapes, it can be reasonably selected; In order to reduce the error of tightening torque, the length of adapter shall be less than that of constant torque wrench; When connecting the adapter, its center line shall be in line with the center line of the wrench. If necessary, the adapter with axis offset can also be used, but the maximum angle shall not exceed 15 °.

5、不允許將定扭力扳手當做普通扳手使用，如用來擰松螺母或螺栓等。

5. It is not allowed to use the constant torque wrench as an ordinary wrench, such as to loosen nuts or bolts.

6、右扭矩定扭力扳手不能左旋，而左扭矩定扭力扳手也不能右旋。

6. The right torque constant torque wrench cannot turn left, and the left torque constant torque wrench cannot turn right.

7、不能用鍍鉻的定扭力扳手和轉接扳手接觸鈦及合金制的螺栓或產品結構。

7. Do not use chrome plated constant torque wrench and adapter wrench to contact titanium and alloy bolts or product structure.

8、定扭力扳手施加的扭矩不允許超過定扭力扳手的額定扭矩值。

8. The torque applied by the constant torque wrench shall not exceed the rated torque value of the constant torque wrench.
